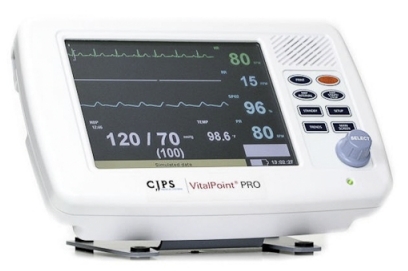

he VitalPoint Pro is a portable multiparameter vital signs monitor that can follow the patient between multiple locations. Real-time monitoring is provided from the ambulance to the emergency room or any medical location. The VitalPoint Pro helps monitor a patient's vital signs via non-invasive sensors. The compact and easy-to-use unit is designed for clinical settings where sub-acute patient care is provided by health care professionals.
Measurements Monitored
- Heart Rate
- Respiration Rate
- Pulse Rate
- Functional oxygen saturation of aterial hemoglobin
- Blood Pressure (Systolic, Mean, and Diastolic)
- Temperature
Features and Benefits
- One of the smallest and lightest hospital monitors on the market, at just 2kg.
- Display 3 of 7 possible waveforms simultaneously.
- Programmable visible or audible alarms when any of the parameters exceeds preset limits.
- Keypad allows for quick access to monitor features.
- Navigation knob allows for easy navigation within the on-screen parameter menus and Setup menu.
- Customizable menu functionality through the Setup menu.
- Colored display of 3 waveforms (can be selected from ECG I/II/III/V, Respiration Rate, NIBP, or SpO2)
- Numerical data enables accurate and convenient recognition of patient information.
Materials Included
- VitalPoint PRO Monitor
- Set of BP Cuffs (Pediatric, Small Adult, Medium Adult, Large Adult, Extra Large Adult)
- Adult SpO2 Sensor
- 5-Lead ECG Cable
Optional Accessories
- Rolling Stand: Includes quick patient monitor release and a 10" x 6" wire basket. 42" Height.
- Wall Mount: Includes quick patient monitor release and 9" or 12" (23cm or 30cm) arm lengths with lateral movement.
- Temperature Probe: Automatically takes and record body temperature, preventing need for manual entry. Temperature Range - 32°F to 122°F or 0°C to 50°C (±.1 for each).
- Extension cable: For Pulse & Oxygen Saturation Nellcor Type Sensor
- Ear Clip Pulse Oximetry Sensor: For non-invasive recording oxygen saturation on the ear.
- Wired, Soft-tip Pulse Oximetry Sensor (Nellcor): Fully molded silicon sensors that are sheath-like in design, which is resilient to immersion, and promote easy handling and cleaning.
- Nomad Software with Laptop: Connects multiple VitalPoint PRO monitors to a Windows based laptop.
Technical Specifications
- Size: 11.3 in. x 7.2 in x 2.4 in (288 mm x 182 mm x 60 mm)
- Weight: 4.5 lbs. (2 kg )
- Battery: Lithium-ion rechargemable, 5-hour life
- Power Requirements: 100 – 240 VAC, 0.7 A m ax
- Mains Frequency Range: 50 – 60 Hz
- Power Consumption: 12 W Nominal; 25 W (when charging battery)
- Display: Digital and up to three (of six) waveforms, variable sweep speed
- Alarms: Visual and audible, configurab le
- ECG: 5-lead cable, Time to alarm - tachycardia (5s typical), Respiration-report interval 1s
- Pulse Oximetry: Peak wavelength range +3nm 3mW
- Temperature: Fahrenheit or Celsius
- Blood Pressure (NIBP): Systolic, mean, diastolic, configurable interval auto measure.
Source:CJPS
