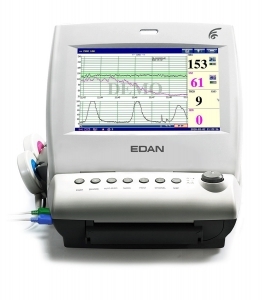

The Edan F6 Fetal Monitor contains the power necessary for multi-bed units while maintaining a simplistic design suitable for private practice. This high-end hospital grade monitor offers one of the most advanced integrated monitoring systems for the delivery room.

• Basic parameters: FHR, TOCO, Event Mark, AFM
• 24 hours waveforms playback
• 150/152mm wide paper printing
• Support American/International standard
• 1, 2, 3 cm/min real-time printing speeds
• Quick printing for stored waveform
• Lithium battery for 4 hours continuous working
• 10.2 - inch high resolution color folding up LCD screen
• Probe rack and wall mounting rack
• Handle for easy transportation
• Multi-crystal pulse wave Doppler waterproof transducer for FHR detection
• Signals Overlap Verification

• Recorder: 1,2,3/cm./min. real printing speed. Fast print speed (stored traces) up to 25mm/sec.
• Recording Paper: 150/152mm, Z-Fold, thermosensitive, American/International Standard

• Technique: Ultrasound Pulse Doppler with auto-correlation
• Pulse repetition rate: 2 KHz
• Ultrasound frequency: 1.OMHz ± 1O%
• FHR range: 50bpm - 240bpm
• Resolution: 1bpm
• Accuracy: ±2 bprn

• Technique: Peak - Peak detection technique
• FHR range: 30bpm - 240bpm
• Resolution: 1 bpm
• Accuracy: ±1 bpm
• Input Impedance: > 10M (Diff erential)
• Input Impedance: > 20M (Common Mode)

• TOCO range: 0-100 Relative (%)
• Resolution: 1 count
• Zero mode: AutolManual
• Non-linear error: 10%
