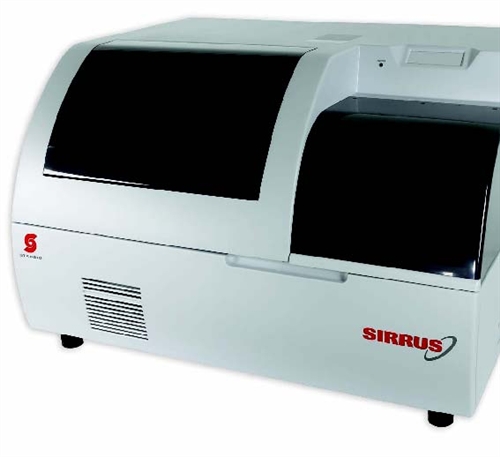

Sirrus automatically reads and manages bar coded reagent bottles and sample tubes. Most reagents have 30-day on-board stability to minimize waste. The intuitive Windows-based software screens make learning and operating Sirrus easy and quick.
Sirrus can run at a blazing 400 tests per hour. Dual reagent probes and a dedicated sample probe translate into higher throughput and faster patient turn-around time. The increased efficiency and use of reusable cuvettes translate into lower costs and thus higher profits per test.
Features and Benefits
Reagent System
- 36 positions for either R1 or R1/R2 reagents
- On-board reagent cooling temperature: 10 ± 2° C
- Liquid, ready-to-use reagents
- 30-day on-board stability for most reagents
- 30-day calibration stability for most reagents
- Reagent probe with automatic level detection
- Automatic inside and outside probe washing after each reagent addition
Sampling Unit
- Sample Type: Serum, plasma, urine, CSF, hemolysate
- 45 patient positions on sample tray (30 primary tubes) including 5 STAT positions
- Standard cup and blood collection tubes accepted
- Integral bar code reader for primary tubes
- Sample volume: 3-30 μL
- Auto-dilution capability
- Auto-rerun capability
- STAT interruption permitted during analysis
- Sample probe with automatic level detection
- Automatic inside and outside probe washing after each sample addition
Reaction Unit
- 60 semi-permanent plastic cuvettes
- 37° ± 0.1° C reaction temperature
- Automatic 10-step cuvette washing system
- Cuvette optical length: 8 mm
Optical Absorption Measuring Unit
- Direct measurement of reaction cuvette
- Monochromatic and bichromatic measurement
- Wavelength: (12 discrete) 340, 380, 405, 450,
- 505, 546, 570, 600, 660, 700, 750, 800 nm
- Cell blank reading corrected after each cuvette washing
- Tungsten halogen lamp, 2000 hours
- Diffraction spectrophotometer with concave grating
- Silicon photo-diode detectors
Ion Selective Electrode (ISE) Unit
- Na, K, Cl test items
- Total of 45 seconds test time to perform all three tests
- Low sample volume: 60 μL
- 24-hour ISE calibration stability
Technical Specifications
- Dimensions: 31.5" W x 25.2" D x 20.5" H
- Weight: approx. 210 pounds
- Power Supply: AC 115V 50/60Hz
- Rated Power Consumption: 600VA
- Water supply/drain: 3.5 liters/hour de-ionized water
