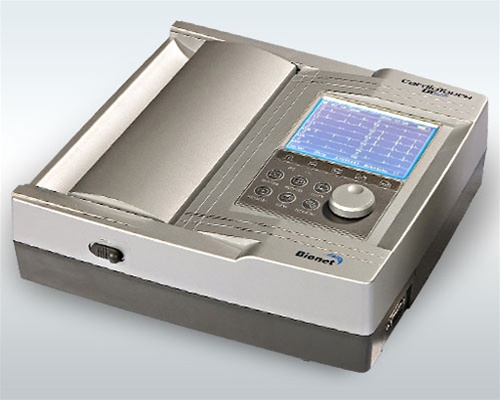

Cardiotouch 3000 Interpretive EKG

15-07-2014

Now comes with free EKG II Plus Software. This allows you to preview and control your Bionet EKG machine from your windows-based computer.


Providing a large LCD display and touchscreen operation, the CardioTouch 3000 is the most efficient and cost-effective 12ch resting ECG. ECG reports, including detailed interpretation information, print on A4 full size paper for easy filing.

Features and Benefits
  • CardioTouch 3000 stands out for it's high functionality, user friendliness, and an unbeatable price/performance ratio.
  • Acquires 10 full seconds of ECG data simultaneously from 10 leads to produce an accurate 12 channel printout with analysis in under 60 seconds!
  • Combines menu-guided touch screen technology with a convenient rotary key to maximize ease of use.
  • Store results for up to 30 patients in internal flash memory.
  • The ECG printout offers detailed interpretation information in beat report format to aid in diagnosis.
  • Uses normal fax paper which costs about ¼ the cost of ECG paper. It will even generate it's own grid!
  • The CardioTouch 3000 will produce full size A4 printouts in 1,3,6 and 12ch formats. Full size print-outs improve readability and make for easier filing in the patient chart.

Technical Specifications


  • ECG leads: 10 lead 12 channel simultaneous ECG and acquisition
  • Dimension: 296 (w) x 305.5 (h) x 92.5 (d)mm, Approximately 3.5kg
  • Recording Channel: 3, 6, 12 channel and 1 channel (60 sec)
  • Sensitivity: 5, 10, 20, auto (I~aVF: 10, V1~V6: 5) mm/mV
  • Printing Speed: 12.5, 25, 50 mm/s
  • Filters: AC (50/60Hz, - 20dB or better); Muscle (25~35Hz, -3dB or better); Base line drift (0.1Hz, -3dB or better);
  • Low Pass Filter: off, 40Hz, 100Hz, 150 Hz
  • Display: 320 x 240 character LCD display (3 leads trends)
  • Monitor Display: ID, date, sensitivity, speed, filter, form, rhythm lead
  • User Interface: Touch screen (alphanumeric and symbol available), keyboard, rotary push-knob (pop-up menu)
  • Patient data: ID, name, age, sex, height, weight
  • Basic Measurement: Heart rate, PR, QRS, QT/QTc, P-R-T axis
  • Recorder: Thermal print head, thermal roll paper
  • Effective writing width: 204mm
  • Electrical:
    • Internal Noise: 20uV (p-p )max
    • Input Impedance: > 10M / Input Voltage Range: > +- 5mV
    • Common Mode Rejection : > 100 dB / DC Offset Voltage: > +-300 mV
    • Time Constant : 3.2sec / Patient Leakage Current : <10uA
    • Frequency Response 0.05~150Hz / Isolated and defibrillation protected
  • Signal Quality Control: Disconnect lead detection, pacemaker pulse detection.
  • Power Supply: AC or built-in battery (optional)
    • 100-240 vac, 50/60Hz, 1.0-0.5 A, 60W max
  • Battery (Ni-MH): 1 hour of normal use (approx. 100 ECG printouts)
  • Communication: PC connection with RS-232 interface and LAN
  • Safety: Class 1, Type BF
  • Conformity: CE, CSA
Materials Included

Promotion - An additional 10 rolls of paper and 1 bag of electrode is given free with purchase. Promotional items will be drop shipped 2-4 weeks after purchase.
  • 10-lead ECG Patient Cable
  • Alligator Clips
  • Electrodes
  • Medi-Graph Paper
  • Hospital Grade Power Cord
  • Operation Manual
  • Diagnostic Guide Book
  • Quick Reference Guide

Source:Cardiotouch
