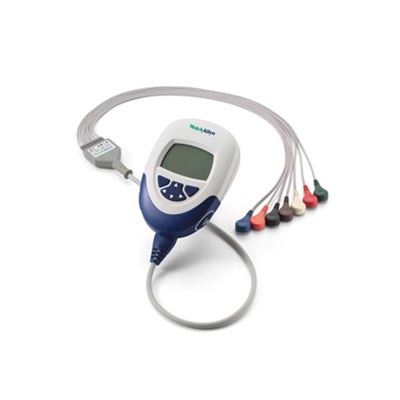

Holter recording in an incredibly small package—note that either the HR-100 or HR-300 can be used with both the Office and Expert software systems.
Features and Benefits
- 2 or 3 channel recording
- 24-48 hours of recording time
- Pacer detection
- Wireless transfer of patient’s ECG in real time to verify electrode quality and placement
- Display for real-time ECG preview or test programming Remote initialization 200, 500, or 1,000 sampling rate
- Windows 2000, XP
- 300 MHz pentium processor or faster
- 256 MB RAM
- 40 GB hard drive
- Mouse and keyboard
- Compact disc reader
- Printer with 300 dpi resolution
- USB 1.1 or 2.0 - 2 USB ports
- CD writer or equivalent for data backup
- Length: 4.4 in (112 mm)
- Width: 3.1 in (78 mm)
- Height: 1.4 in (36 mm)
- Weight: 14 oz (397 g)
- Power Source: Two AA (size LR6) alkaline batteries
- Sampling Rate: 200, 500, 1,000 sps
- Recording Period: Maximum 24-48 hours continuous
- Storage Capacity: Data remains valid for 5+ years or until memory card is initialized
- Battery Life: 48 hours
- Pacemaker Detection: ANSI/AAMI EC38-1998
- Effective A/D Resolution: .5mV
- Frequency Response: 0.05 to 250 Hz
Source:Welch Allyn
