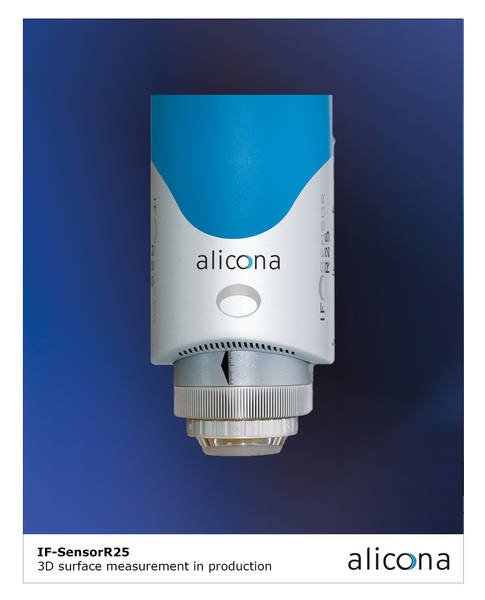

The IF-SensorR25 available from Alicona is a sophisticated optical 3D measurement device designed for automatic in-line measurement of form, roughness and orientation in production. The system combines the features of a coordinate measurement technology and surface measurement device in a single product. This means, users can measure form, roughness and orientation using a single device. The IF-SensorR25 is based on Focus-Variation technology.

Additionally, large vertical scan ranges provided by the system aids in measuring geometries of different components. The IF-sensor offers repeatable and traceable measurements, regardless of production conditions, like temperature fluctuations and ambient light. The system provides automatic surface measurement, and according to requirements and applications, can be integrated into production.

Key Features
-User-friendly
-High resolution and speed
-Repeatable and traceable measurements
-Automatic surface measurement
-Automatic in-line measurement of form, roughness and orientation
-Allows verification of dimensional accuracy, form deviations and form tolerances

Applications
-Material science
-Microelectronics
-Micro injection molding
-Medical technology
-Turbine blades
-Paper and print industry
-Tool industry

Source:Alicona
