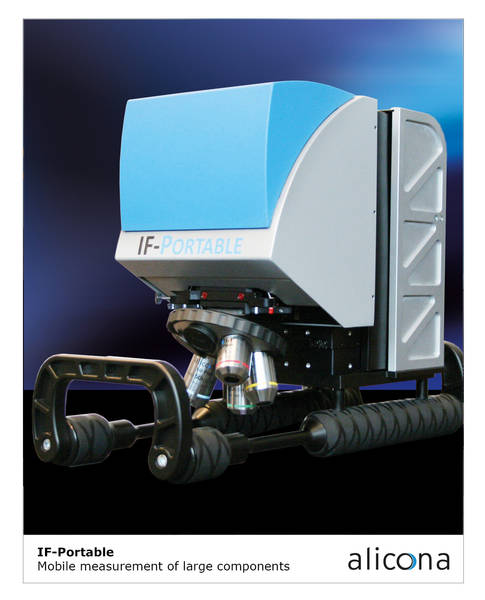

IF-Portable, the advanced optical 3D micro coordinate measurement device from Alicona is designed for measuring roughness and form on large components with plane and curved geometries. Even under production conditions, this mobile form and roughness measurement device provides traceable, repeatable and stable results. The IF-Portable covers measurement areas with up to 50x50x19 mm dimension and is based on Focus-Variation technology.

The system is resistant to vibrations and temperature variations and provides high measurement accuracy. It is also compact and portable. Users can obtain a vertical resolution of up to 10 nm with components having small angles and radii or steep flanks.

Key Features
-Simple, handy and portable
-Form and roughness measurement of plane and curved geometries
-Stable, traceable and repeatable results
-High measurement accuracy
-Automation of measurement tasks improves process reliability and efficiency

Applications
-Measurements of rotor blades, turbine blades, steel and body type surfaces
-Composite materials
-Print industry

Source:Alicona
