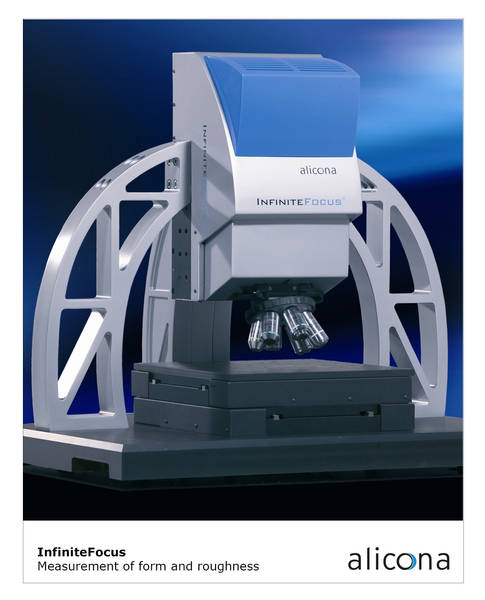

Alicona offers an advanced optical 3D micro coordinate system, InfiniteFocus, which is specifically designed for measuring form and roughness across large measurement areas and volumes. The system is based on Focus-Variation, an area based technology that integrates micro coordinate measurement technology and traditional surface metrology.

The InfiniteFocus offers traceable and repeatable results and also provides exact, high-resolution measurement results of different textures and components with small angles and radii. Measurements acquire a vertical resolution of about 10 nm. Even steep flanks of 85° are measured with high vertical resolution. In addition, each measurement comes with color information registered to the 3D data.

Key Features
-Traceable and repeatable results
-Achieves vertical resolution of up to 10 nm
-Measures steep flanks with highest vertical resolution
-Operates on large measurement areas and volumes
-No wear and maintenance costs
-Optional 360° measurement allows full form measurement

Applications
-Material science
-Medical technology
-Paper and print industry
-Micro diecasting
-Micro electronics
-Forensics
-Measurement of milling cutters, drills, and other tap tools
-3D measurement of micro machined components and turbine blades

Source:Alicona
