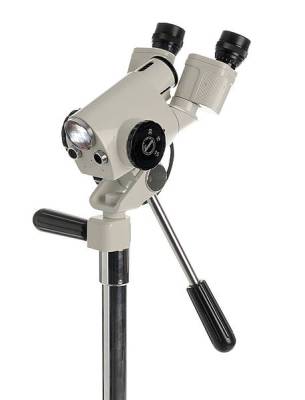

Unique to single magnification colposcopes is ColpoStar’s fiber optic halogen lighting system which yields white, clear, cool, natural tone tissue illumination for accurate colposcopic examination. ColpoStar 1H offers precision, distortion-free stereo optics, optimum single magnfication, wide field of view and great depth-of-field.
Features and Benefits
- Five-point base for stability and maneuverability between examination areas.
- Compact center post with fine and coarse height adjustment.
- Magnification: 12x.
- Working Distance: 300mm.
- Precision, distortion-free optics.
CPT Codes
- 57420 (Colposcopy of the entire vagina, with cervix if present) - Avg. Reimbursement: $94.21
- 57456 (Colposcopy of the cervix including upper/adjacent vagina; with endocervical curettage) - Avg. Reimbursement: $107.83
Technical Specifications
Optical System
- Binocular Eyepieces: 15x
- Objective Lens: 0.8x
- Magnification: 12x
- Working Distance: 300mm
- Visual Field: 18mm
- Fine Focus Range: 40mm
Illumination/Power
- Bulb: 150 Watt Quartz Halogen
- Illuminated Field: 20mm
- Filter: Green Filter
-
Light Intensity: 1800 Foot Candles
- (19,368 Lux) at 300mm
-
Power Requirement: 2 Amps / 1 Amp
- 120/220 Volts AC
Stand/Base
- Working Height: 86 cm to 116 cm
- Fine Height Adjustment: 75mm
-
Base:
- High impact plastic
- 5 chrome covered legs with swivel casters
Source:ColpoStar
