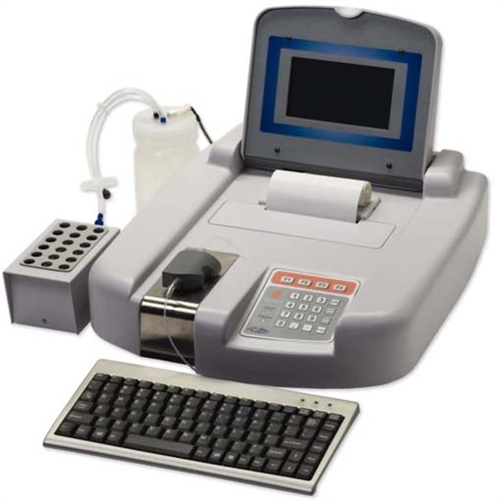

An easy to use, compact filter photometer controlled by a microprocessor. Test samples are read using a flowcell module to minimize reagent consumption. The analyzer is equipped to handle endpoint, kinetic and EIA assays.
Features and Benefits
- Easy to follow instructions are displayed on the screen for each test, with additional technical support provided through our detailed operating manual.
- Open system format accommodates 120 programs and for added convenience, all Stanbio standard routine chemistries are programmed into the Excel.
- The analyzer completes all the necessary calculations and displays patient results in a user defined format. Printed results eliminate manual calculations and provide hard-copy patient records. The Excel makes it possible to have test results within minutes.
- The Excel delivers hospital quality results through the use of a bichromatic optical system, which eliminates interferences caused by sample or cuvette quality.
- Single point calibration by standard or factor, uptake, multi-point calibration with point-to-point curve fit, rate by standard or factor (batch or single) and sample blanking.
Reagants Analyzed
Albumin, Alkaline Phosphatase, ALT/SGPT, Amylase, AST/SGOT, Bilirubin, Total Bilirubin, Direct, Calcium, Chloride
Cholesterol, CK (NAC), CK-MB, Creatinine, Gamma-GT, Glucose (Hex.), Glucose (Trinder), Glycohemoglobin, Iron, Total Hemoglobin, HDL-Cholesterol, LDH, Magnesium, Potassium, Sodium, Total Protein, Phosphorus, Triglyceride, Urea, Nitrogen, Uric Acid
Materials Included
- Excel chemistry analyzer
- Operators manual
- 18 position incubator
- Computer keyboard
- Printer Paper
Technical Specifications
-
Modes:
- Standard Absorbance
- Kinetic Absorbance (with or without factor)
- Multi-point (up to 7 points)
- Wavelength: 340, 405, 450, 505, 545, 600 nm (with Peltier system)
- Capacity: 120 channels
- Minimum Read Volume: 500 μL
- LCD Screen: 240 x 128 pixel
- Dimensions: 40 x 37 x 14 cm
- Weight: 6.4 kg
Source:seal-analytical
