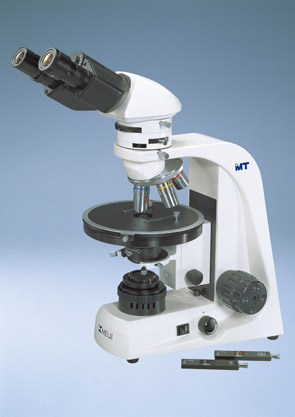

MejiTechno: Polarizing Microscopes MT9000 and MT9900 Series

17-06-2010







Meiji Techno's brand new transmitted and incident light polarized microscopes are the MT9000 Series. The MT9000 Series employs all new and improved strain free S.Plan optics. Meiji Techno's ICOS™ (Infinity Corrected Optical System) makes the study of thin sections and other mounted samples fast and easy while delivering an excellent cost-to-performance ratio. The MT9000 Series features include:

  • Computer Aided Design
  • Ergonomically positioned controls
  • Comfortable Siedentopf viewing heads
  • 30W Transmitted Koehler Halogen Illuminator
  • 30W Vertical Incident Koehler Halogen Illuminator (MT9920 & MT9930)
  • Strain Free Optics Throughout
  • Brightfield and Polarized Lightobservation modes
  • Optional Point Counting Stage



VIEWING HEADS
Model MA952 is the Siedentopf-type binocular head and Model MA953 is the trinocular head for camera integration. Each head has the 23.2mm eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings.



The interpupillary distance is adjustable between 53mm - 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work.



Each head has the new integrated reticle angle compensation system. When the IP distance or number is changed, the crossline reticle remains perpendicular in the FOV.



EYEPIECES
10X Widefield High Eyepoint eyepieces F.N.20 are standard. A Widefield High Eyepoint 10X focusable eyepiece that has a 21mm crossline reticule and guide pin is also available.



OBJECTIVE CHANGER
The smooth-operating, ball bearing mounted, quadruple nosepiece provides effortless objective changes.



OBJECTIVES
Meiji Techno offers an assortment of S.Planachromat Infinity Corrected objectives for Transmitted Light or Incident Light .



STAGE
Ceramic coated 360 degree rotatable fully indexed stage with vernier and stage clips. Stage Dimensions.



CONDENSER
All new Strain Free Abbe N.A. 1.25 condenser with iris in dovetail mount.



ILLUMINATION
Powerful 30 watt Koehler halogen illumination in either transmitted and/or vertical incident, provides enhanced image quality and brightness for the observation of specimens.



POLARIZING ACESSORIES
All MT9000 Series come standard with 1/4 wave plate, Bertrand lens and first order red plate. Optional Senarmont compensator and quartz wedges are available along with attachable point counting stage.
