The Ultra Precision Benchtop 3D Optocal Profiler brings high performance optical measurements within the reach of both precision manufacturing and research companies.

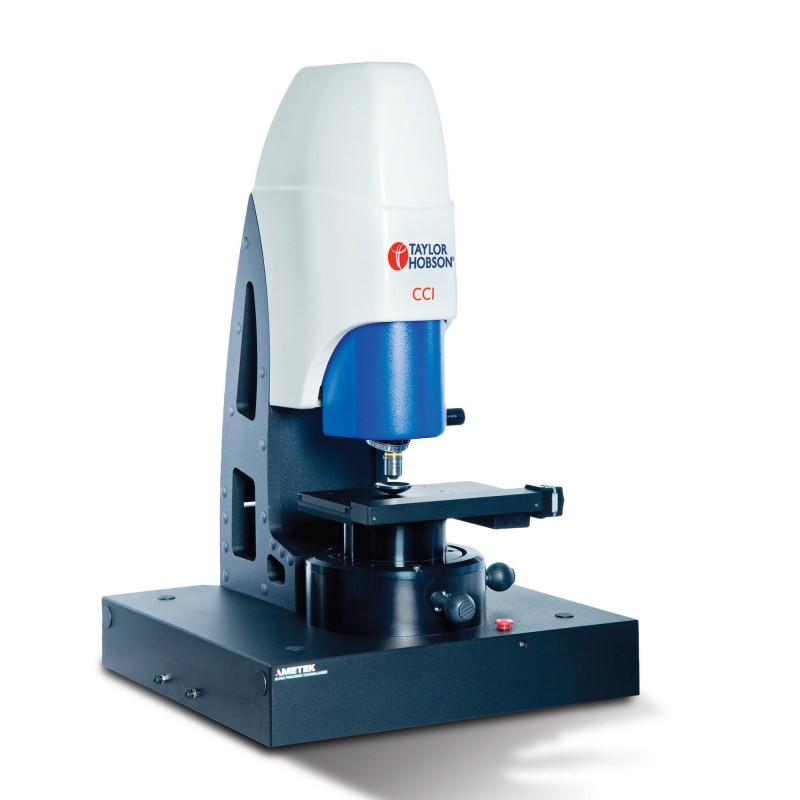

The Talysurf CCI MP is an advanced type of measurement interferometer (a non contact 3D Profiler). It uses an innovative, patented correlation algorithm to find the coherence peak and phase position of an interference pattern produced by our precision optical scanning unit.

All types of surfaces can be measured with the 3D Optical Profiler Talysurf CCI MP. Versatility is one key benefit of the Talysurf MP Lite non-contact 3D Profiler. Polished or rough, curved, flat or stepped surfaces with reflectivity between 0.3% and 100% can all be measured using one single algorithm, with no need to change mode for different surfaces and no concerns about the wrong mode being selected.

All material types are measurable including: glass, liquid inks, photo resist, metal, polymer and pastes

Description
-Taylor Hobson CCI MP: Single measurement mode, next generation interferometer
-Advanced optical interferometer
-Virtual elimination of measurement uncertainty
-CCI MP has a robust design for cost effectiveness
-CCI MP: Ready for production or research project
-Ease of use reduces cost of operator training
-comprehensive platform simplifies ISO 17025 integration

Technical Data
-Measurement type: 3D non-contact
-Measurement mode: Coherence Correlation Interferometry (CCI)
-Z scanner: Ultra high precision closed loop piezoless scanner
-Objective mount: 3 position turret

CCI MP Maginification range
Standard From 2.5x to 100x. Other objective lenses are available upin request.

Source:Taylor Hobson
